Auth

Login with Keycloak

To enable Keycloak Auth for your project, you need to set up an Keycloak OAuth application and add the application credentials to your Supabase Dashboard.

Overview

To get started with Keycloak, you can run it in a docker container with: docker run -p 8080:8080 -e KEYCLOAK_ADMIN=admin -e KEYCLOAK_ADMIN_PASSWORD=admin quay.io/keycloak/keycloak:latest start-dev

This guide will be assuming that you are running keycloak in a docker container as described in the command above.

Keycloak OAuth consists of five broad steps:

  • Create a new client in your specified keycloak realm.
  • Obtain the issuer from the "OpenID Endpoint Configuration". This will be used as the Keycloak URL.
  • Ensure that the new client has the "Client Protocol" set to "openid-connect" and the "Access Type" is set to "confidential".
  • The Client ID of the client created will be used as the client id.
  • Obtain the Secret from the credentials tab which will be used as the client secret.
  • Add the callback url of your application to your allowlist.

Access your Keycloak admin console

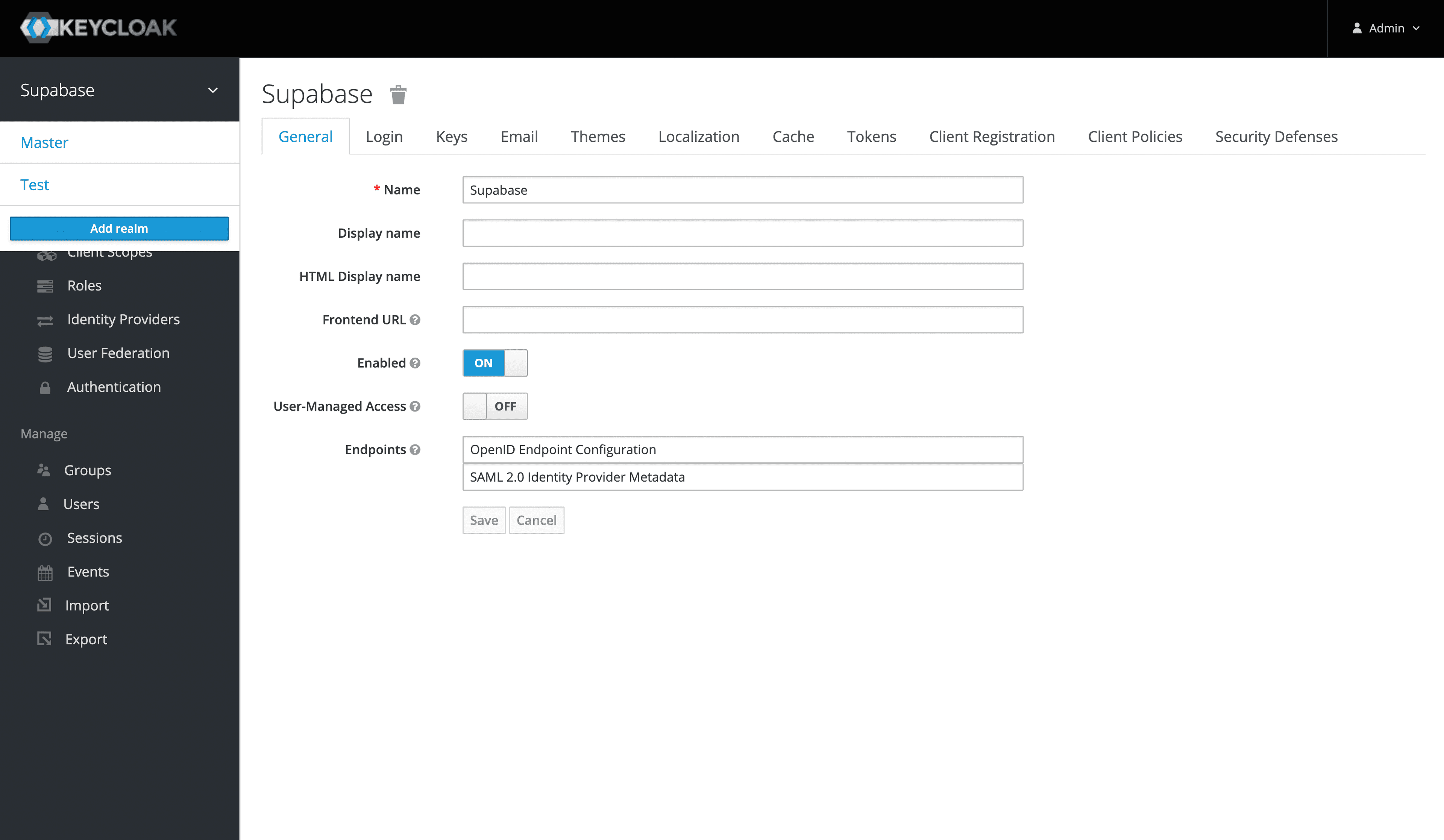

Create a Keycloak realm

  • Once you've logged in to the Keycloak console, you can add a realm from the side panel. The default realm should be named "Master".

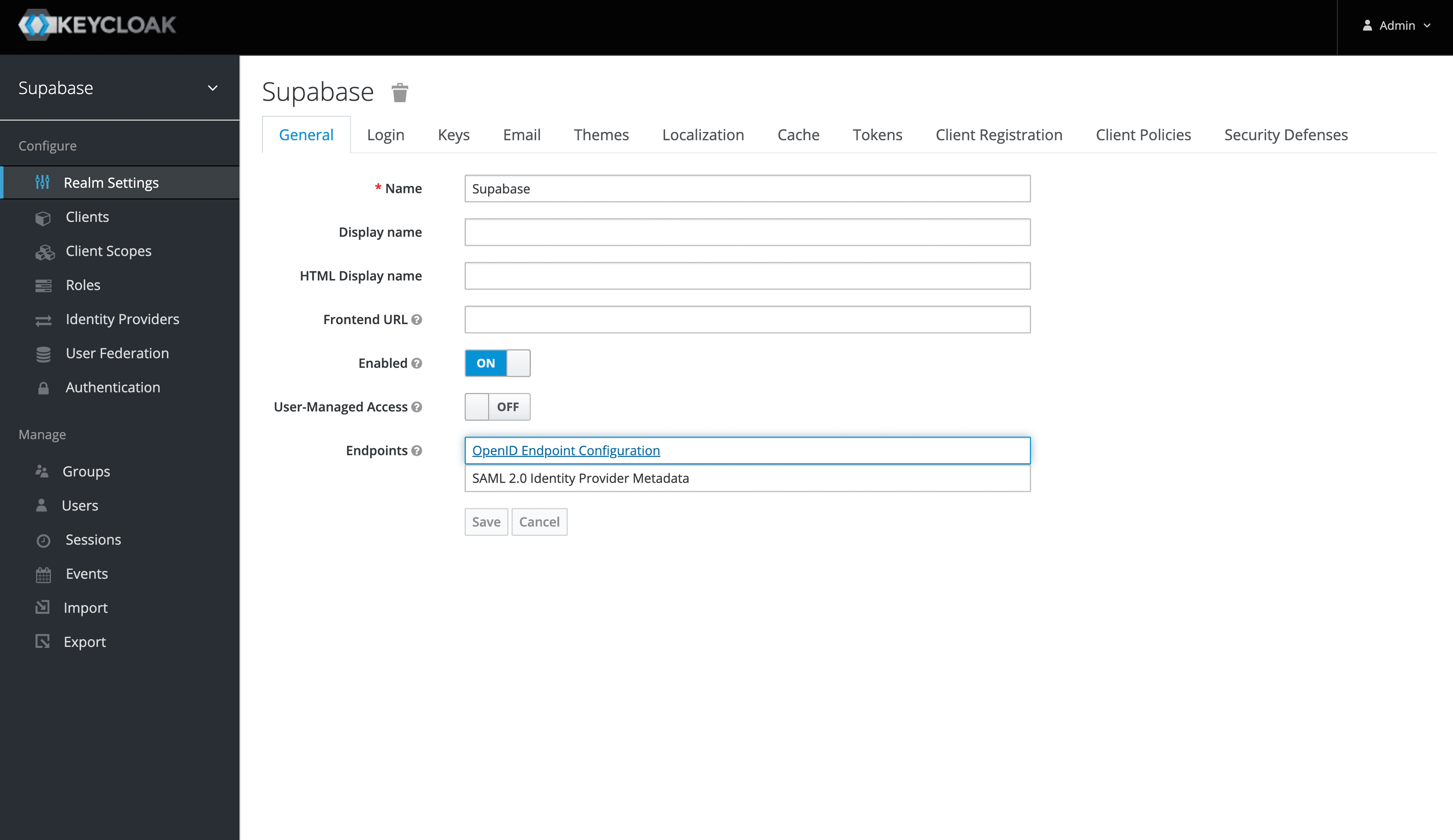

  • After you've added a new realm, you can retrieve the issuer from the "OpenID Endpoint Configuration" endpoint. The issuer will be used as the Keycloak URL.
  • You can find this endpoint from the realm settings under the "General Tab" or visit http://localhost:8080/realms/my_realm_name/.well-known/openid-configuration

Add a Keycloak Realm.

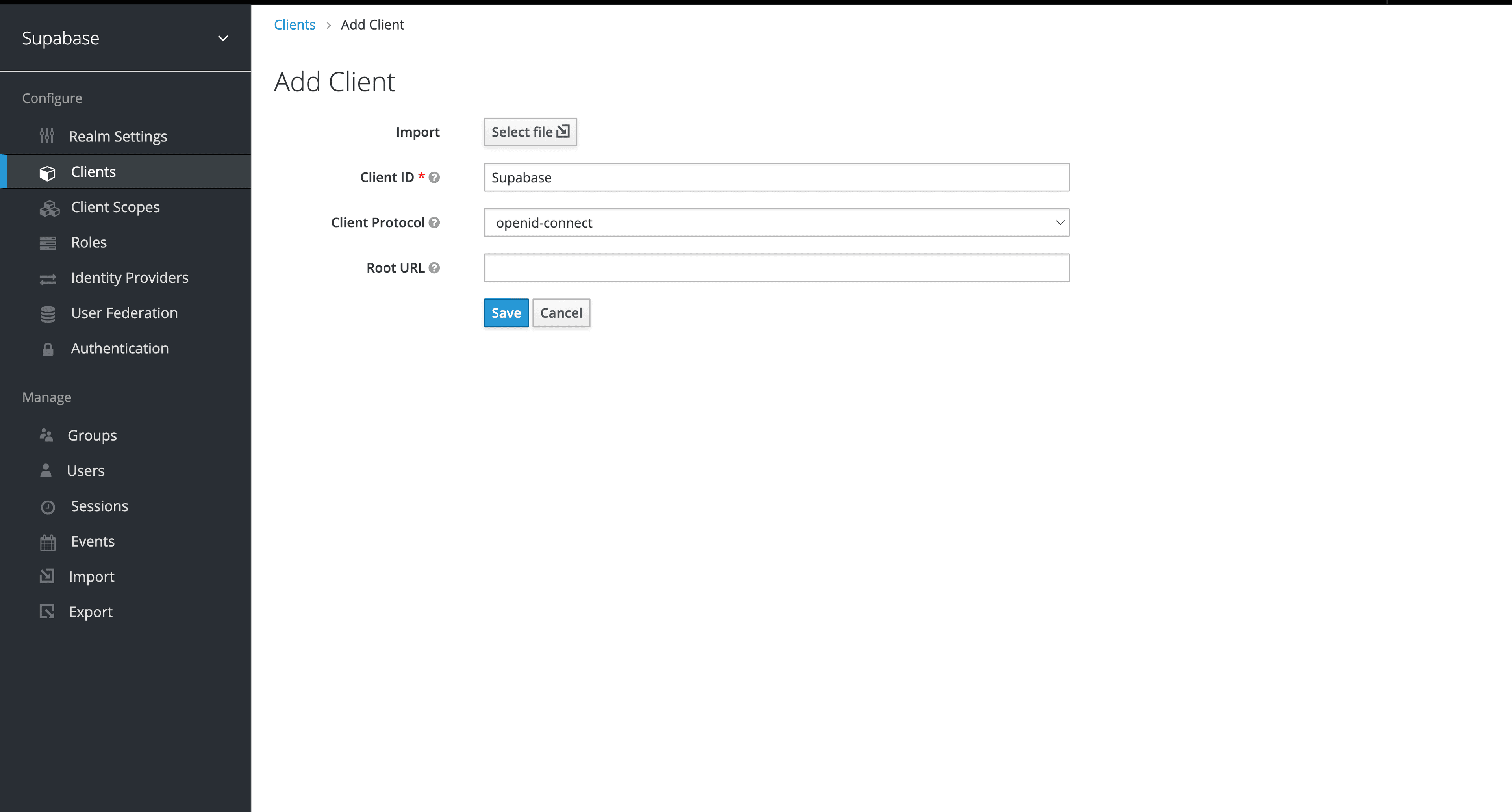

Create a Keycloak client

The "Client ID" of the created client will serve as the client_id when you make API calls to authenticate the user.

Add a Keycloak client

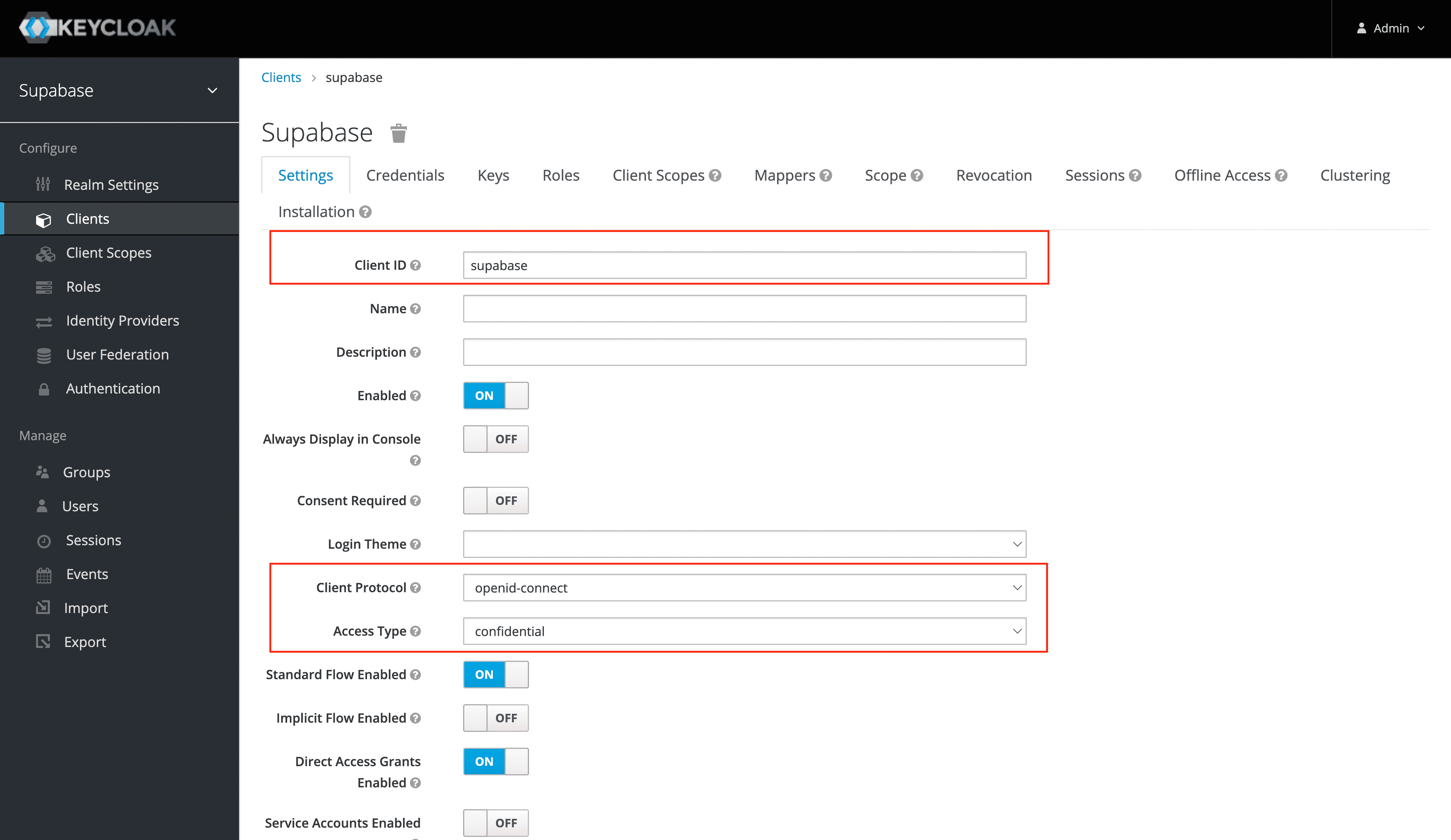

Client settings

After you've created the client successfully, ensure that you set the following settings:

  1. The "Client Protocol" should be set to "openid-connect".
  2. The "Access Type" should be set to "confidential".

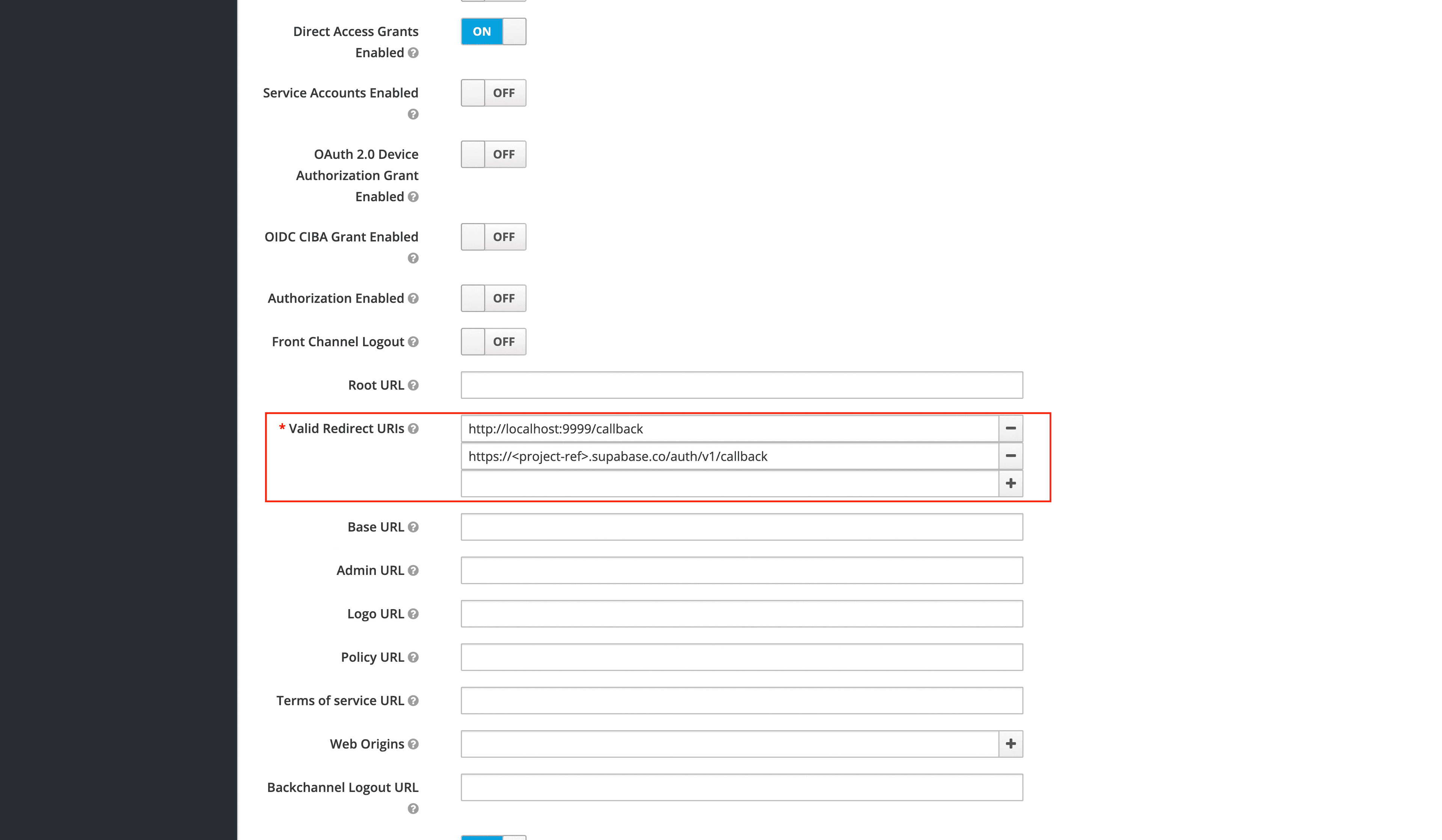

  3. The "Valid Redirect URIs" should be set to: https://<project-ref>.supabase.co/auth/v1/callback.

Obtain the client id, set the client protocol and access type Set redirect uri

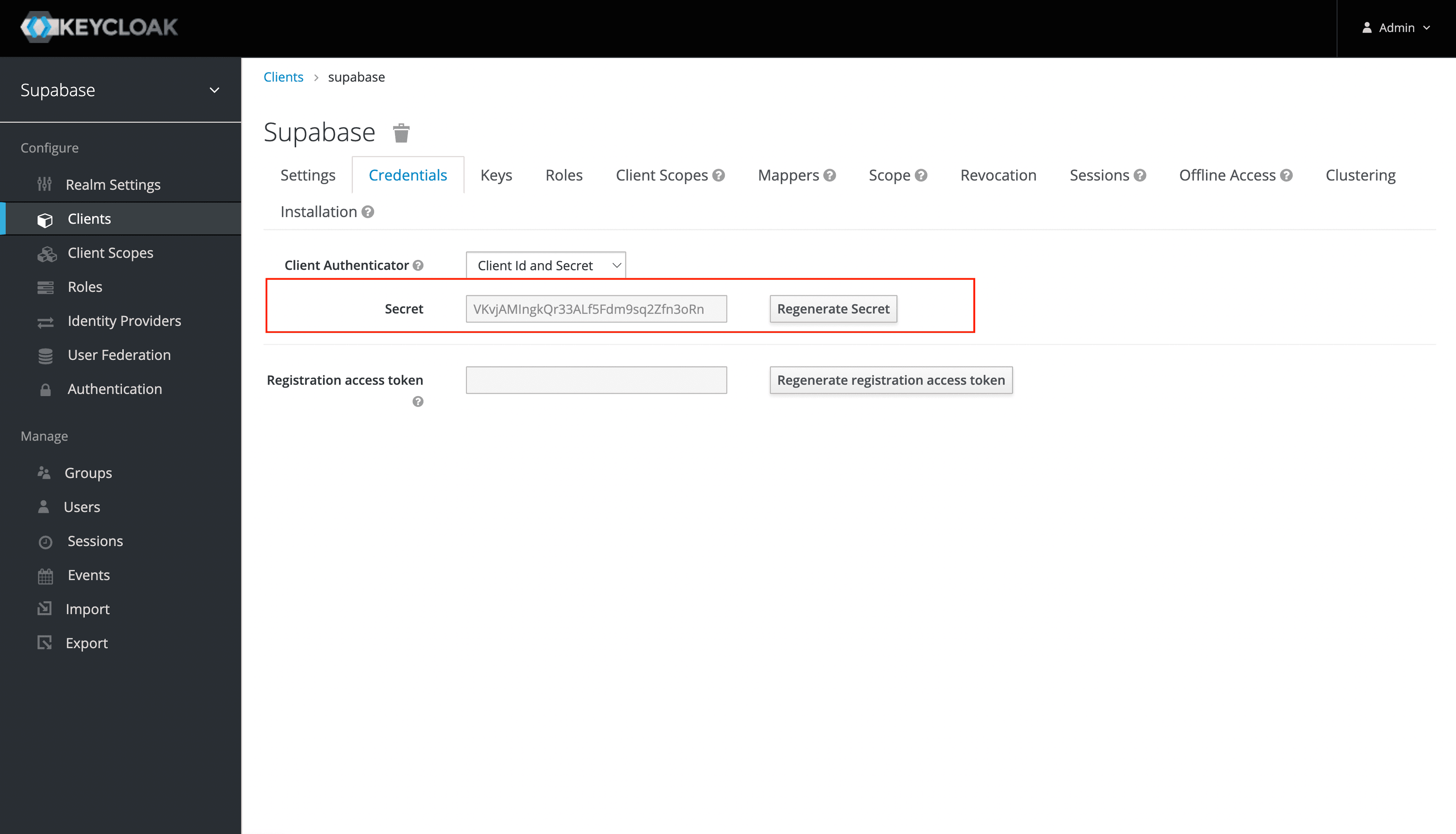

Obtain the client secret

This will serve as the client_secret when you make API calls to authenticate the user. Under the "Credentials" tab, the Secret value will be used as the client secret.

Obtain the client secret

Add login code to your client app

Since Keycloak version 22, the openid scope must be passed. Add this to the supabase.auth.signInWithOAuth() method.

When your user signs in, call signInWithOAuth() with keycloak as the provider:


_10
async function signInWithKeycloak() {
_10
const { data, error } = await supabase.auth.signInWithOAuth({
_10
provider: 'keycloak',
_10
options: {
_10
scopes: 'openid',
_10
},
_10
})
_10
}

For a PKCE flow, for example in Server-Side Auth, you need an extra step to handle the code exchange. When calling signInWithOAuth, provide a redirectTo URL which points to a callback route. This redirect URL should be added to your redirect allow list.

In the browser, signInWithOAuth automatically redirects to the OAuth provider's authentication endpoint, which then redirects to your endpoint.


_10
await supabase.auth.signInWithOAuth({
_10
provider,
_10
options: {
_10
redirectTo: `http://example.com/auth/callback`,
_10
},
_10
})

At the callback endpoint, handle the code exchange to save the user session.

Create a new file at app/auth/callback/route.ts and populate with the following:

app/auth/callback/route.ts

_38
import { cookies } from 'next/headers'
_38
import { NextResponse } from 'next/server'
_38
import { type CookieOptions, createServerClient } from '@supabase/ssr'
_38
_38
export async function GET(request: Request) {
_38
const { searchParams, origin } = new URL(request.url)
_38
const code = searchParams.get('code')
_38
// if "next" is in param, use it as the redirect URL
_38
const next = searchParams.get('next') ?? '/'
_38
_38
if (code) {
_38
const cookieStore = cookies()
_38
const supabase = createServerClient(
_38
process.env.NEXT_PUBLIC_SUPABASE_URL!,
_38
process.env.NEXT_PUBLIC_SUPABASE_ANON_KEY!,
_38
{
_38
cookies: {
_38
get(name: string) {
_38
return cookieStore.get(name)?.value
_38
},
_38
set(name: string, value: string, options: CookieOptions) {
_38
cookieStore.set({ name, value, ...options })
_38
},
_38
remove(name: string, options: CookieOptions) {
_38
cookieStore.delete({ name, ...options })
_38
},
_38
},
_38
}
_38
)
_38
const { error } = await supabase.auth.exchangeCodeForSession(code)
_38
if (!error) {
_38
return NextResponse.redirect(`${origin}${next}`)
_38
}
_38
}
_38
_38
// return the user to an error page with instructions
_38
return NextResponse.redirect(`${origin}/auth/auth-code-error`)
_38
}

When your user signs out, call signOut() to remove them from the browser session and any objects from localStorage:


_10
async function signOut() {
_10
const { error } = await supabase.auth.signOut()
_10
}

Resources

  • You can find the keycloak openid endpoint configuration under the realm settings. Keycloak OpenID Endpoint Configuration
